Box for lamp "open-microphone" control for trap and skeet

Availability: On reservation

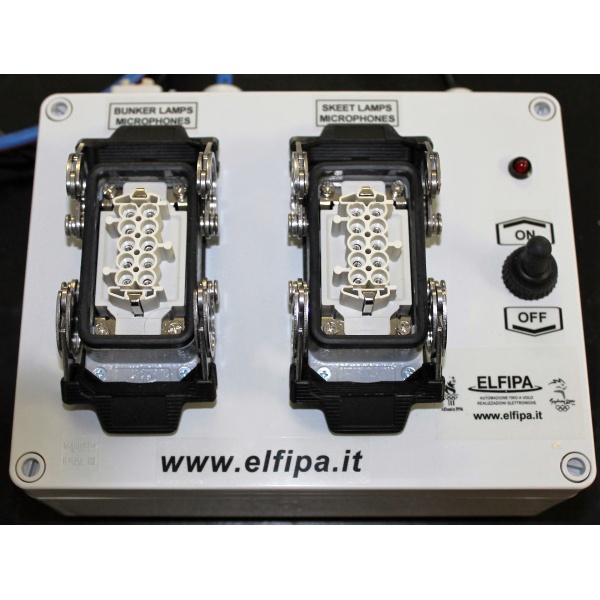

Box for 13 lamps on Microphone

Code: QSL03

Box for lamp "open-microphone" control for trap and skeet



This accessory has been designed to be able to insert into the microphones a lamp that indicates when the microphone is open.
The operation is fully automatic.
The Box is capable of driving a lamp 12 Vdc and 3 watts of power.
It connects to the Sequencer via the plug of the coin-box.
Can drive 5 lamps for microphones of the Olympic trap and 8 lamps for microphones of skeet.
The version with the connectors is indicated in the realization of mobile installations, where the lamp cables are removed, making it easy wiring.

Operation:

The box receives the command from the sequencer to turn on the lamp.

Installation:

The box comes ready to use, simply connect the plug to the Sequencer and connect the lamps in the appropriate Plugs.

Standard Equipment:

  • Box with Connectors

Options available on request:

  • 125 Vca or 12/24 Vcc Power Supply Unit

Where can it be applied?

It is applied in the fields provided with our sequencer.
