Big scoreboard 2 modules

Availability: On reservation

Scoreboard with 7 lines of 32 characters - without fixing supporters

Code: TGM02

Big scoreboard 2 modules



The Scoreboard 2 Modules let the spectators follow the competition live, showing all the necessary information at an interesting price.

Main features:

  • Dimensions: 220x140 cm; it's made up of 2 Scoreboards of 1 Module
  • Resolution: 7 lines for 32 characters
  • It can be read from over 30 mt distance
  • High brightness which makes it visible in the direct sunlight
  • Inox Steel Structure to withstand bad weather conditions

Operation:

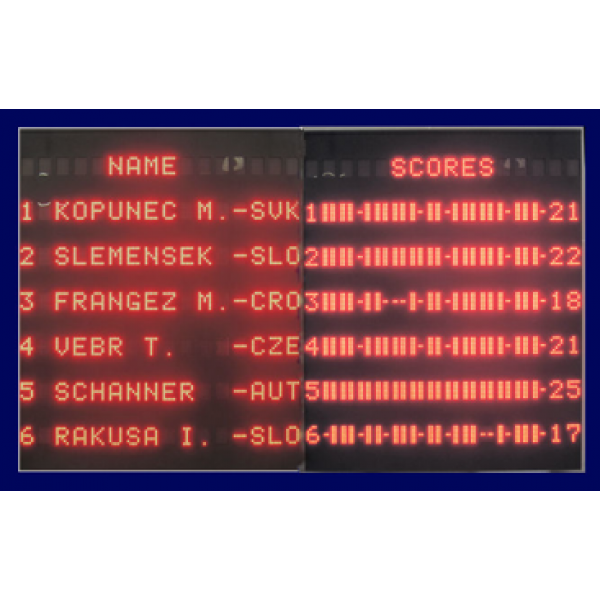

The Scoreboard, together with ELFIPA’s system, works completely automatic. On the first line all the information about the battery is shown. On the other six lines, on the monitor on the left the names of the shooters are visualized, while on the module on the right you can see the scores.
With the computer it is possible to see other information and to use the Scoreboard for advertising purposes. For the ones that don’t have the implant with video interfaces and computer, the Scoreboard can be connected directly to our electronic sequencer and it let the scores visualization. In this case the module on the left keeps off.

Installation:

The Board needs to be installed on a proper stand, in a position which is visible to the spectators and the shooters. There’s the possibility of dividing the Scoreboard 2 Modules in 2 Scoreboards 1 Module, that are to be used in different ranges; a proper mobile structure can allow this.

Standard Equipment:

  • Big Scoreboard 2 Modules
  • 30 m cable

Where can it be applied?

It can be applied directly to our Sequencer or to the External Video Interface.



Code: TGM02 Category: , , , ,
